Before, During, and After the remodel |
We put so much work
into this project that we had to show the process. No offense to ESPN, but
the original Seafoam Green carpeting on the walls was pretty hideous. We
completely stripped the trailer to the plywood walls and floors and
re-carpeted and re-floored it.
|
|

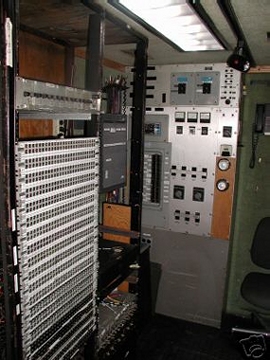

Tech Space Before Video Patch Bay and Power Distribution Panel |
|

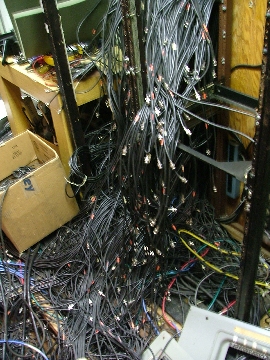

Tech Space During We removed about 2000 lbs of cabling. The lower photo is the cabling that was behind the video patch bay in the upper photo. The racks in the center photo were
originally camera |
|
Tech Space After | |
|
|
Network and Telco Before Previously the Audio Booth, the overhead racks were retained, the rack on the right was removed to provide a pass-through to the dispatch room. |
|
Network and Telco After The overhead racks now contain the Telco T1 channel banks and the Network Routers. |
|
|
|
Dispatch Room Before Originally the Production Control Room. The monitor wall explains why there was 3.5 tons of A/C just for cooling it. There were originally 44 TV monitors in the racks. |
|

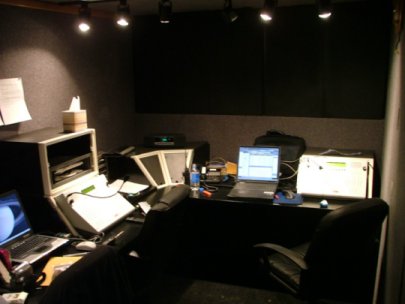

Dispatch Room After Switcher and Producers benches were removed and replaced with Motorola CentraCom dispatch furniture. |
|
All of the storage bays in "the basement" were re-sealed against moisture, and most had their aluminum floors un-riveted and re-sealed. | |
